W11S Universal TOP roller steel sheet plate bending roll machine Machine For Roll Bending Machine

W11S series roll bender 01

Machine Features

1.High Precision end Pre-bending
The straight enge length can be set freely, the upper roller press to pre-bend NC Control, high productivity.Parameters are controlled by NC, easy for operation, improve the productivity greatly

2.Good accuracy
The upper roller is like a drum, the lower rollers assorted with it through support rollers. Bend continuously, can roll ideal products from thin to thick plates widely

3.Safety Insurance
The lower rollers are fixed, the upper roller move vertically and horizontally. The job does not work with the working rollers. Complete structure, simple foundation, convenient movement. The machines has unitary basement, does not need earth bolts, has simple foundation

4. Many kinds of bending shapes
Cone cylinder auxiliary device, you can roll a range of cone-cylinder. O-bending : bending the back way; U-bend: the way forward bending. Bend with type R, ways of combination

W11S series roll bender 02

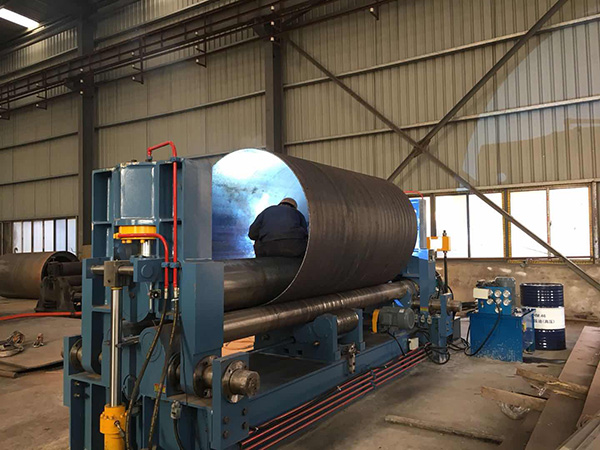

W11S series roll bender 04
W11S series roll bender 03

Optional Special Device

Top support device
Cone device
Feeding roll-table
Side support device
Roller shaft grinding / Chrome / Encapsulating
Overturn device: hydraulic verturn device to remove products.

Components

  • Main power:Siemens Electrical made in Germany

  • Main electronic elements: Schneider made in France

  • Axletree:Double-row self-aligning bearingfrom Germany

  • Main motor: Siemens Electrical made in Germany

  • Programmable logic controller PLC:OMRON products from Japan

  • Hydraulic system: Bosch – Rexroth made inGermany

  • Gear pump: made in China TaiWan

  • Work Roller:Material of work roller with 42CrMo Alloy steel

Technical  Data
Model Max.Roll Thickness Max.RolLwidth Upper roller diamater Side Roller Diemater Motor
mm mm mm mm Kw
W11S-4×1500 4 1500 140 120 3
W11S-6×2000 6 2000 190 170 4
W11S-6×2500 6 2500 220 180 5.5
W11S-8×2500 6 2500 250 210 7.5
W11S-12×2000 12 2000 250 210 11
W11S-12×3000 12 3000 310 270 15
W11S-16×2500 16 2500 310 270 15
W11S-16×4000 16 4000 390 360 22
